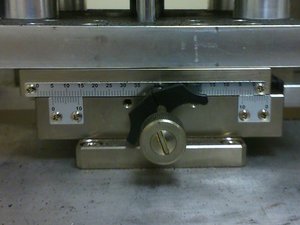

Use a torque wrench to turn the x-translation stage's knob to a suitable value.
Note that the larger the wear track radius, the lower the RPM required (RPM should never exceed 3000). However, a lower wear track radius would also increase the wear of the disk counterface.
Recall from the hardware guide that:
For pin specimen, Wear track radius = X + 25 - (S - 4.5)cos45
Where X is value read from x-translation stage and S is sample size in mm.
