How to Grease Coupling Middle Piece

Written By: Low Jun Hua
  • Comments: 0
  • Favorites: 0

Difficulty

Easy

Steps

5

Time Required

00:10:00

Sections

1

Flags

0

Tools

Parts

No parts specified.

  1. Loosen the coupling bottom piece by loosening the hexagonal socket head screw with an s4 Allen key as shown an s4 Allen key fits an M5 hex screw

    • Loosen the coupling bottom piece by loosening the hexagonal socket head screw with an s4 Allen key as shown

    • an s4 Allen key fits an M5 hex screw

    Edit

  2. Remove the plastic middle piece

    • Remove the plastic middle piece

    Edit

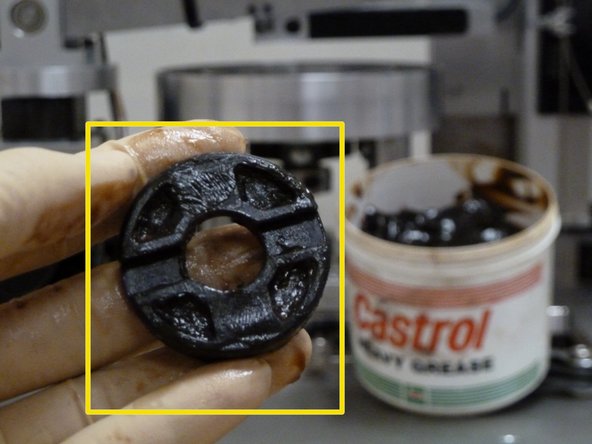

  3. Using gloves, apply heavy grease sparingly on the middle piece

    • Using gloves, apply heavy grease sparingly on the middle piece

    Edit

  4. Align and place the middle piece back with the coupling top piece

    • Align and place the middle piece back with the coupling top piece

    Edit

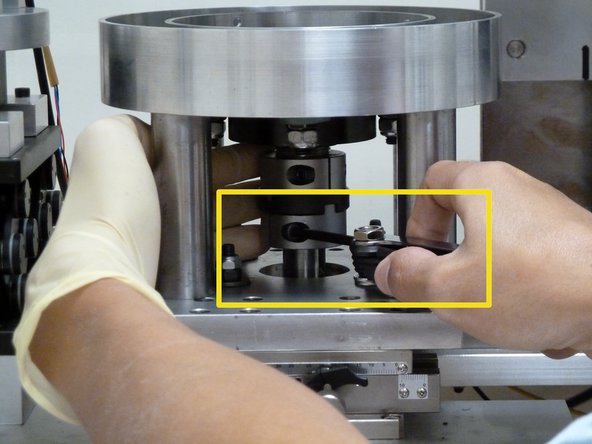

  5. Align the coupling bottom piece with the plastic middle piece

    • Align the coupling bottom piece with the plastic middle piece

    • Secure the bottom piece by tightening the hexagonal screw with an s4 Allen key

    Edit
Finish Line
